AWS Architecture

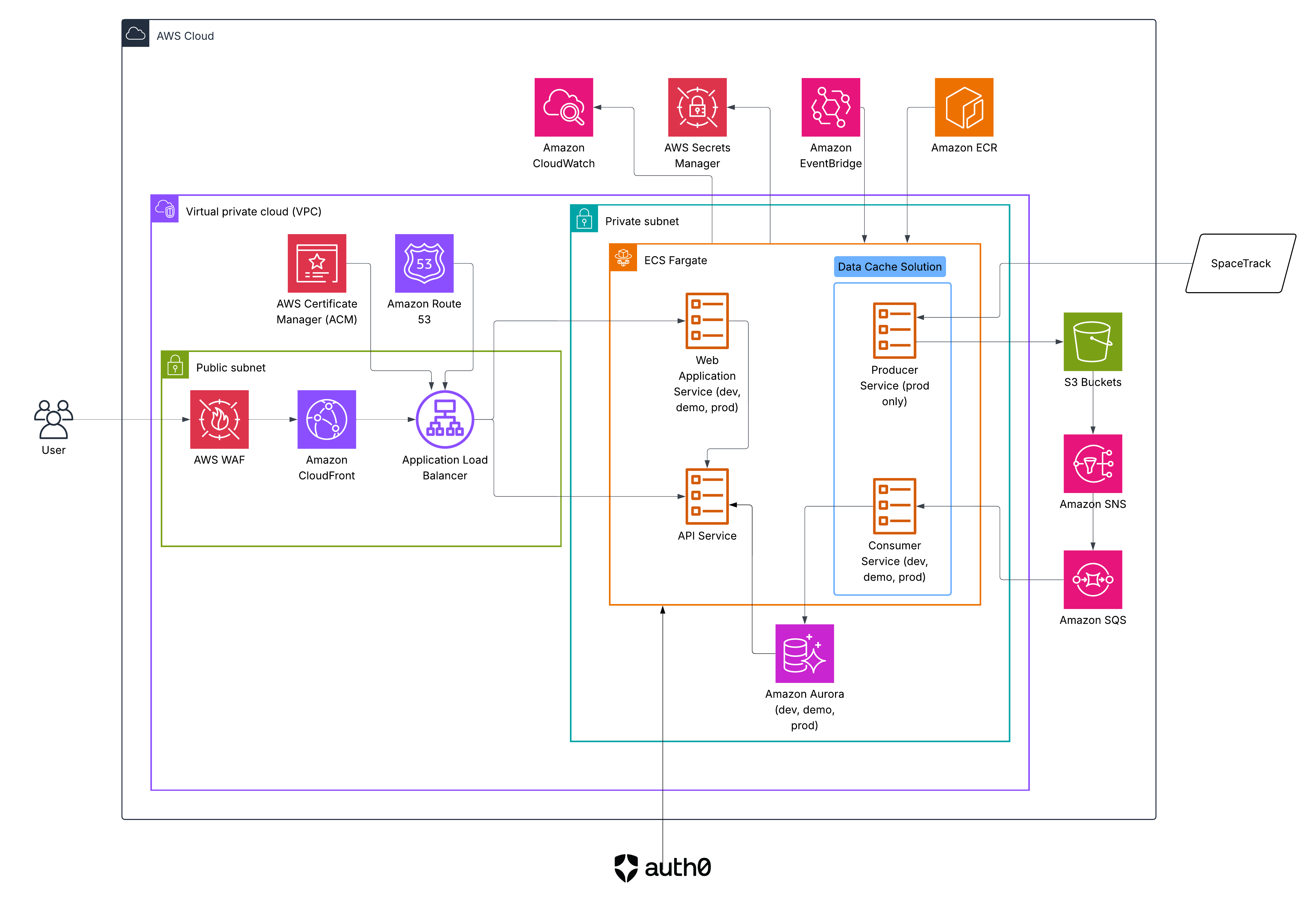

This diagram provides a comprehensive overview of the AWS infrastructure for the Monitor Space Hazards system, highlighting key services, deployment environments, and data flows.

Components

  • Users access the system via the internet, routed through AWS WAF and Amazon CloudFront for security, caching, and distribution.
  • Application Load Balancer distributes traffic to the Web Application Service and API Service running in ECS Fargate across dev, demo, and prod environments.
  • Web Application Service provides the frontend interface, consuming data from the API Service, while users can also interact directly with the API if preferred.
  • Data Cache Solution: comprises a Producer Service (prod only, connects to SpaceTrack to avoid throttling) and Consumer Service (dev, demo, prod), orchestrating ingestion and processing of external data.
  • Amazon Aurora hosts the primary relational database across dev, demo, and prod, with all write operations coming from the API and data cache consumer.
  • Amazon S3 stores raw and processed data; SNS and SQS manage asynchronous notifications and queueing for event-driven workflows.
  • AWS Secrets Manager securely stores application secrets and credentials, accessible by services running in Fargate.
  • Amazon EventBridge orchestrates event-driven triggers across the system.
  • Amazon ECR stores container images for Fargate deployments.
  • Amazon CloudWatch monitors application and infrastructure metrics, logs, and alerts.
  • AWS Certificate Manager (ACM) and Route 53 manage TLS certificates and DNS routing.
  • Auth0 handles user authentication and identity management.
